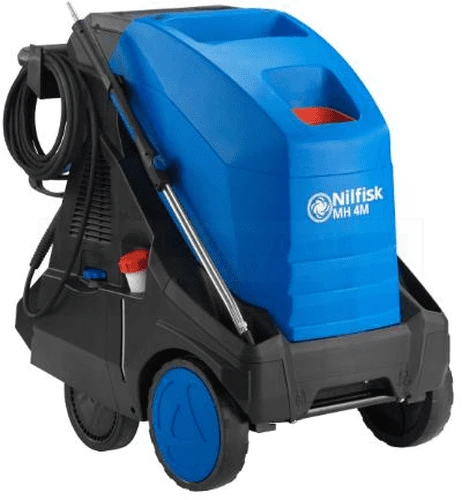

Nilfisk Mobiler Heißwasser Hochdruckreiniger MH 4M-180/860 FAL EU 107146916

Performance, long life-time and ergonomics

The MH 4M series takes mid-range hot water high pressure washers to a new level, meeting the latest productivity demands in the market. The MH 4M is equipped with our industrial NA5 pump with 3 ceramic pistons and a high efficiency 4 pole motor. And the flow activated control system improves user comfort and handling as well as overall machine reliability. The MH 4M is suited for all hot water slightly heavier cleaning applications up to 4-6 hours use per day and due to the improved fuel saving EcoPower boiler system it offers very high efficiency and quick cleaning. Service and maintenance can be carried out quickly, as all vital parts are easy to inspect and reach. Also, the diagnostics function of the 4M will give maintenance warnings to minimize any downtime. Furthermore, service and maintenance can be carried out quickly, as all vital parts are easy to inspect and reach. The MH 4M concept ensures the most optimal transport concept across a wide variety of surface types with the 4 large wheels and great balance. Optimal accessory storage facilities with double lance holders, turnable hook for easy removal or winding of electrical cable, innovative spray gun holder and easy storage of detergent tanks. Together with the quick service access to all vital parts, this series will provide remarkable cleaning results, saved time and reduced costs.



Vorteile:

• High efficiency 4 pole motors
• EcoPower boiler with EcoMode function
• Brass pump head
• Flow or Pressure activated unloader system
• Innovative design with 4 big wheels
• Easy to transport, can even be pushed/pulled across uneven surfaces
• Diesel oil tank with level sight
• As standard delivered with 10l external detergent tank (A) and space for an extra tank (B)
• Low fuel warning system
• Onboard diagnostics function







Technische Daten:

• Weight (kg) 133
• Length x width x height (mm) 1010x700x1016
• Fuel tank (l) 15
• Pump pressure (bar/MPa) 180/18
• Cleaning impact (kg/force) 4.3
• Water flow Qmax/Qiec (l/h) 860/790
• Max. inlet temperature (°C) 40
• Water temperature (water/steam) (°C) 90
• Power consumption (kW) 5.9
• Voltage/phase/frequency/current (V/~/HZ/A) 400/3/50/10
• Fuel consumption at ?T=45°C (kg/h) 3.5
• El cable (m) 5
• Detergent tank (l) B: 10
• Nozzle size .0435
• Ceramic pistons 3
• Pump (RPM) 1450
• Detergent tank vorhanden
• Full ceramic pistons vorhanden
• Three phase vorhanden
• SilentPower – 1450 rpm motor vorhanden
• QuickService – innovative concept vorhanden
• Ergo accessory system vorhanden
• Service indicator vorhanden
• Parking brake vorhanden
• Brass cylinder head vorhanden
• Fuel tank vorhanden
• Delayed automatic start stop vorhanden
• High presure detergent system vorhanden
• Water break tank vorhanden
• Flame sensor vorhanden
• Spray Gun Holder vorhanden
• Cable Hook, turnable vorhanden
• Motor on-off lamp vorhanden
• Transportable by forklift truck vorhanden
• Detergent tank 10 ltr. vorhanden
• Fuel tank 15 ltr. vorhanden
• Fuel sight from outside vorhanden
• Eco mode feature vorhanden
• 2 lance holder vorhanden
• Large wheel – 4 pcs. vorhanden
• Storage box vorhanden



Artikel-Nr.:

NILFISK-107146916

Alternative Nr.:


Nilfisk 107146916

Hersteller-Nr.:


107146916

EAN:


5711145275479
