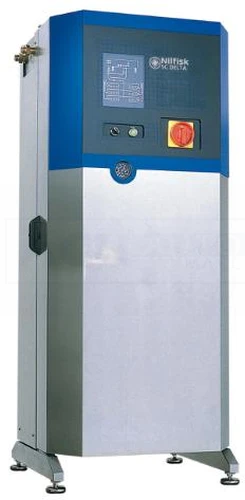

Nilfisk Stationärer Kaltwasser Hochdruckreiniger SC DELTA 7P-160/3120-3 440/3/60 EXPT 7330107

The SC DELTA is a multi-pump, multi-pressure system encompassing from 3 to 6 pumps – and allowing up to 6 people to work at any time. A stationary cold water unit for the heaviest cleaning applications in industry, food industry and shipping.

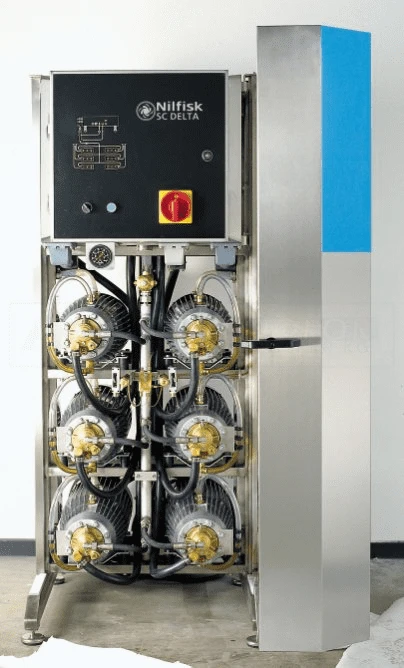

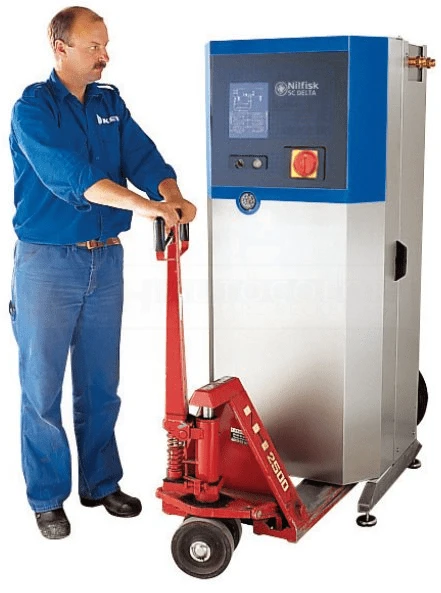

Each user can choose his working pressure and flow – based on the main unit line pressure and a range of special lances. The SC DELTA thus covers low, medium and high pressure applications. The on-board PCB automatically manages the start stop of pumps according to demand and also incorporates a diagnostic system. Because space is often at a premium, the SC DELTA has been designed in a compact cabinet to take up as little room as possible. The design allows easy transport to the place of installation and easy preparation for function. Service access is optimal with the front cabinet door opening both to left and right to give direct access to all maintenance elements.



Vorteile:

• 3 to 6 pumps for up to 6 users at one time
• Colour coded lances allow mixed use of low, medium and high pressure, detergent application
• Inlet water of up to 85°C into break tank and 70°C through pumps
• Stainless steel design with high level of accessibility and serviceability
• Machine continues to run whilst individual pumps can be removed for service
• Intelligent start stop function for motor pumps depending on real-time demand from users
• Line pressures available from 100 to 160 bar







Technische Daten:

• Pump pressure (bar/MPa) 160/16
• Cleaning impact (kg/force) 15.9
• Water flow Qmax/Qiec (l/h) 3120
• Max. inlet temperature (°C) 85
• Pump (RPM) 1730
• Weight (kg) 349
• Power consumption (kW) 20.1
• Voltage/phase/frequency/current (V/~/HZ/A) 440/3/60/11.9-33.7
• Sound power level, re Directive 2000/14/EU (LwA) 83
• Number of pumps 3
• Ceramic pistons 4
• Nozzle size MIX OF NOZZLES
• Length x width x height (mm) 815x770x1800
• Full ceramic pistons vorhanden
• Stainless steel frame vorhanden
• Automatic standby vorhanden
• PCB electronic control vorhanden
• SilentPower – 1450 rpm motor vorhanden
• QuickService – innovative concept vorhanden
• C3 4-ceramic piston pump vorhanden
• 85°C inlet water temperature vorhanden
• Diagnostic system vorhanden
• Compact design vorhanden
• Intelligent pump control system vorhanden
• Multi pressure lance system for low,medium or high pressure use vorhanden



Artikel-Nr.:

NILFISK-7330107

Alternative Nr.:


Nilfisk 7330107

Hersteller-Nr.:


7330107

EAN:


5701715252054
